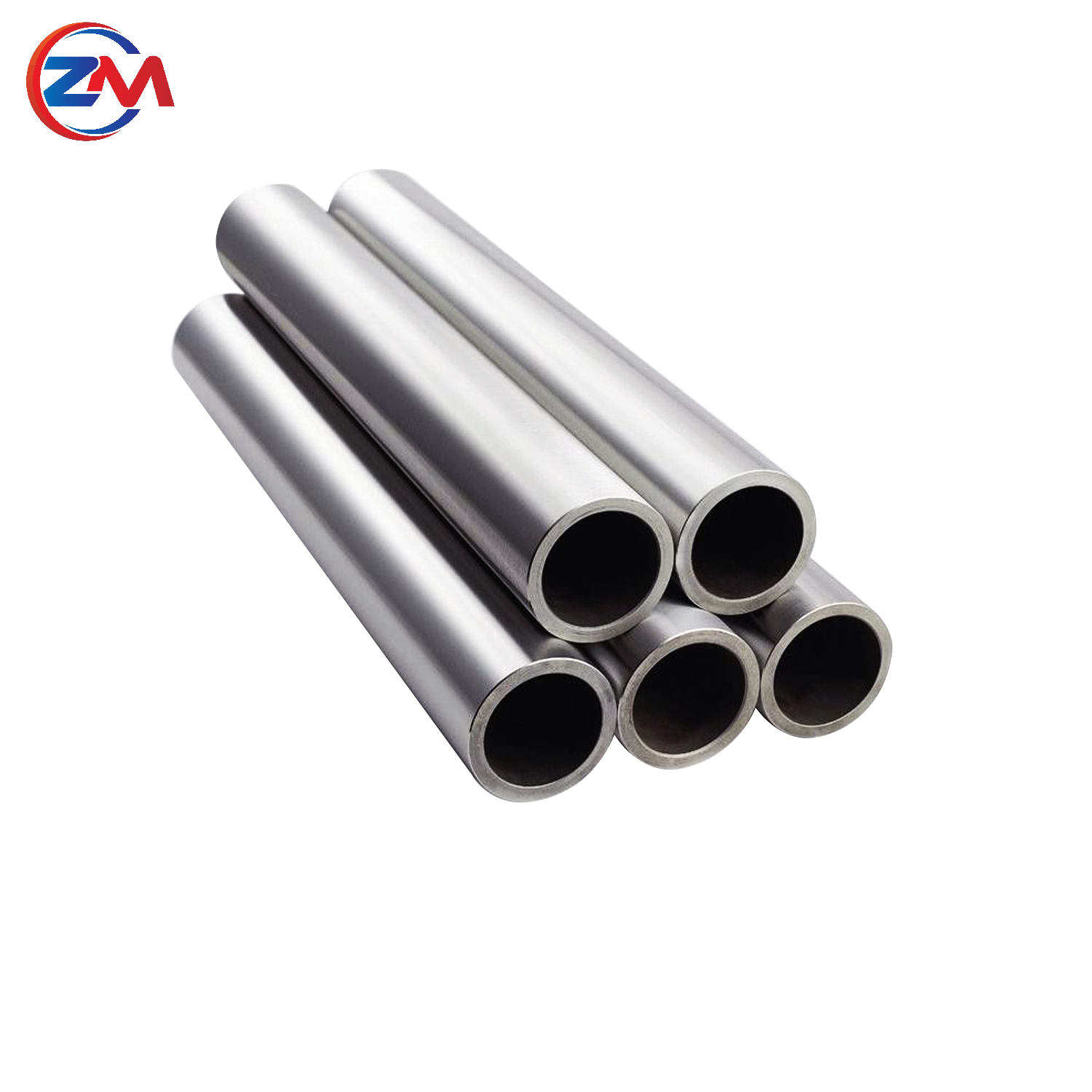

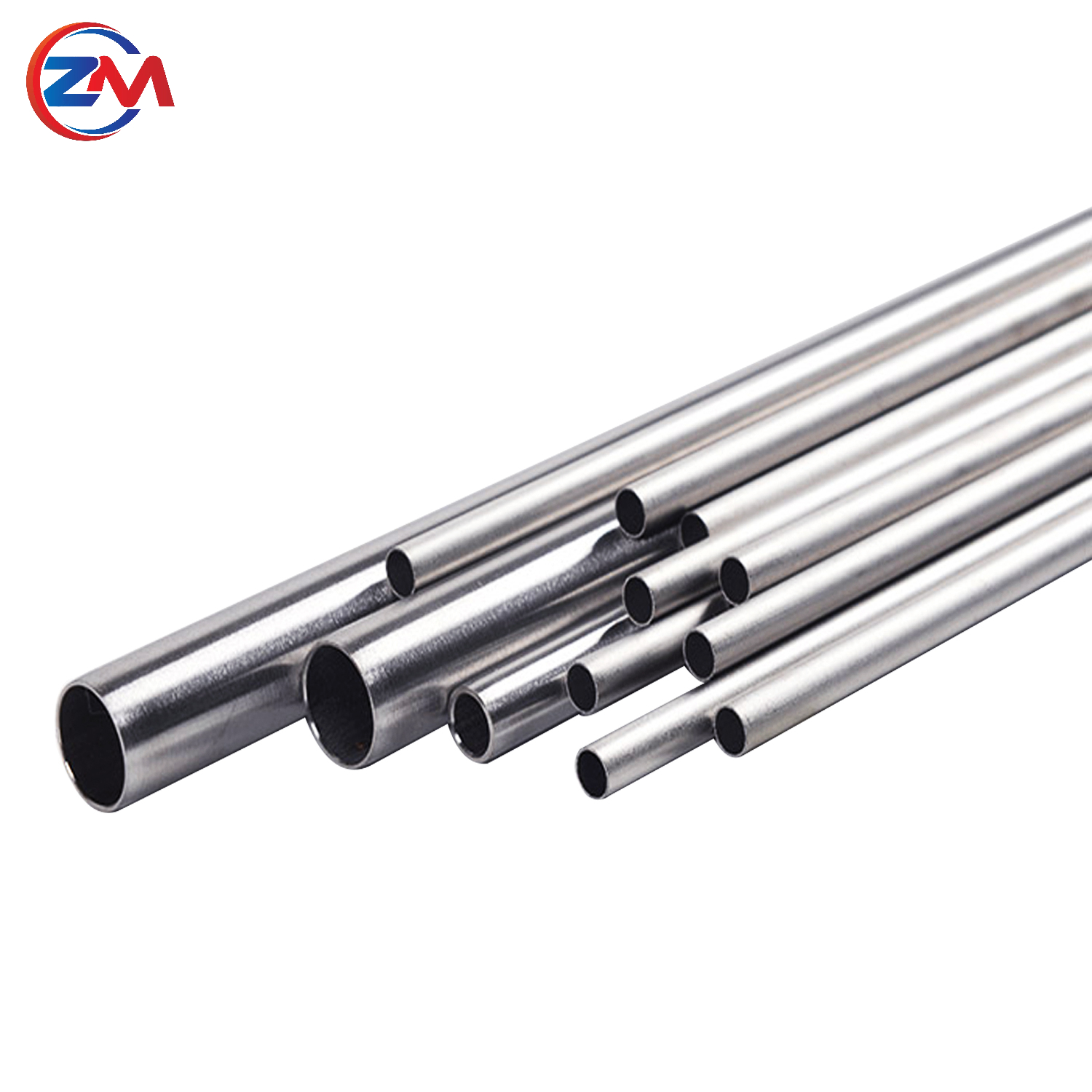

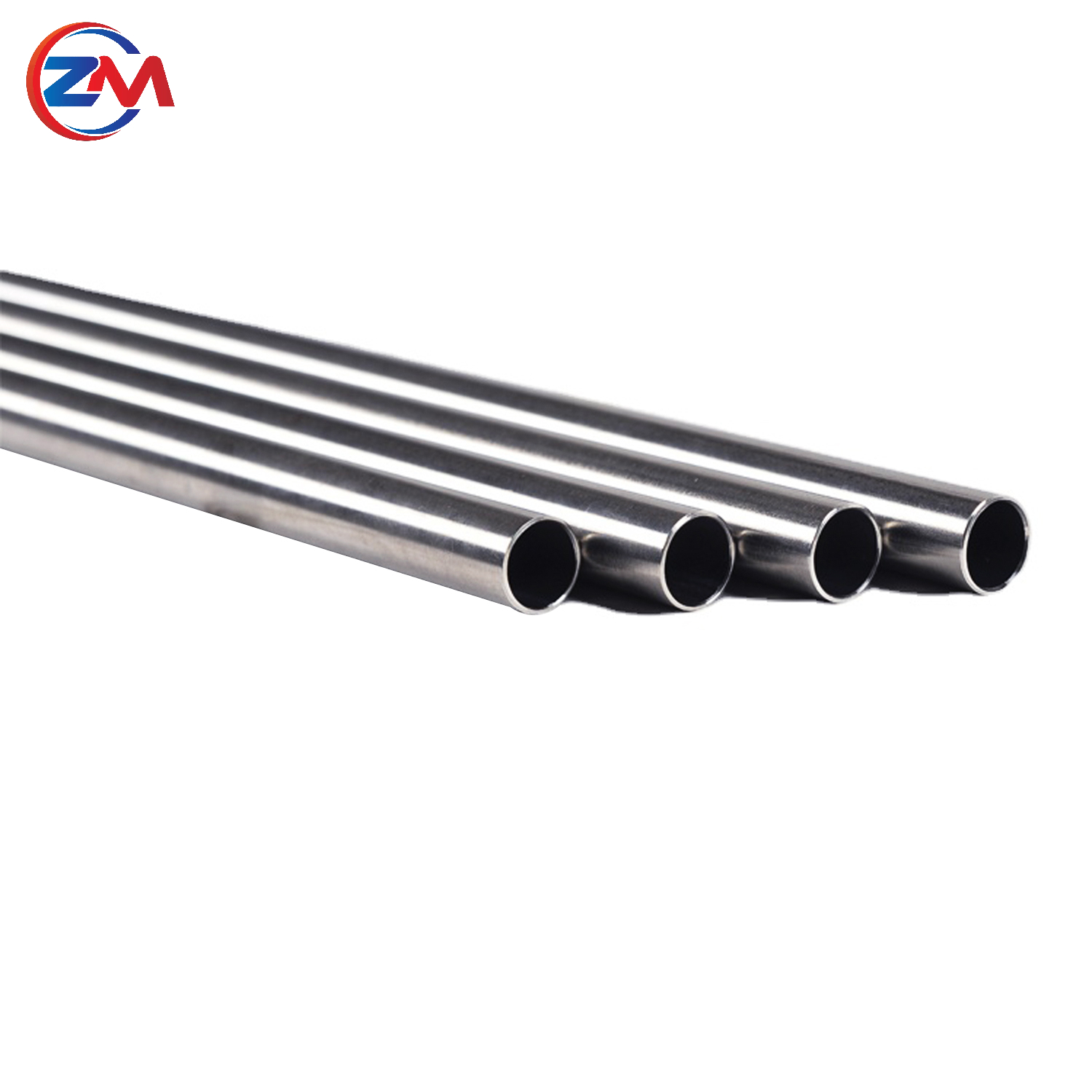

Titanium Alloy Pipe

Product Description

Titanium tube
Standard	GB/T3625,ASTM B338,ASTM B862 ASME SB338
Certification	IOS9001:2015,ISO/TS 16949:2009
Outer diameter	6mm - 89mmLength ≤25000mm According to your requirements or coild tube
Outer diameter
Wall thickness	0.3-3mm
Material	Gr1(TA1),Gr2(TA2),Gr12(TA10)
Delivery time	Within 25 days after receiving deposit
Payment term	T/T,L/C
Supply ability	250 tons per month
Packing	Export standard package with polywood case or ISPM 15 stamped wooden case
Information	Beside the normal executive syandard.we could alse make the tubes according to your own requirements,such as wall thickness tolerance,hardness,surface requirements and etc.by different technical requirements and production technology,try our best to satisfied your.

GRADE	SPECIFICATIONS
CP-GRADES 2,3,4	AMS-4941, 4942, BMS-7-21, DMS-1872, 1874, 1898
3AL-2.5V	AMS-4943, 4944, 4945, DMS-2241, B50TF35, PWA-1260

Titanium	Composition Requirements, weight percent
Grade	C	O	N	H	Fe	Al	V	Pd	Ni	Mo
1	≤0.08	≤0.18	≤0.03	≤0.015	≤0.20	-	-	-	-	-
2	≤0.08	≤0.25	≤0.03	≤0.015	≤0.30	-	-	-	-	-
3	≤0.08	≤0.35	≤0.05	≤0.015	≤0.30	-	-	-	-	-
4	≤0.08	≤0.40	≤0.05	≤0.015	≤0.50	-	-	-	-	-
5	≤0.08	≤0.20	≤0.05	≤0.015	≤0.40	5.5~6.75	3.5~4.5	-	-	-
7	≤0.08	≤0.25	≤0.03	≤0.015	≤0.30	-	-	0.12~0.25	-	-
9	≤0.08	≤0.15	≤0.03	≤0.015	≤0.25	2.5~3.5	2.0~3.0	-	-	-
11	≤0.08	≤0.18	≤0.03	≤0.015	≤0.20	-	-	0.12~0.25	-	-
12	≤0.08	≤0.25	≤0.03	≤0.015	≤0.30	-	-	-	0.6~0.9	0.2~0.4
16	≤0.08	≤0.25	≤0.03	≤0.015	≤0.30	-	-	0.04~0.08	-	-
17	≤0.08	≤0.18	≤0.03	≤0.015	≤0.20	-	-	0.04~0.08	-	-
23	≤0.08	≤0.13	≤0.03	≤0.0125	≤0.25	5.5-6.5	3.5~4.5	-	-	-

Tensile Strength	Yield Strength	Elongation	Bend Test(Radius of Mandrel)
Grade	ksi [MPa]	0.2% offset, ksi [MPa]	in 2", %	t<1.8 mm	1.8 mm≤t<4.75 mm
1	≤35 [240]	20~45 [138~310]	24	1.5T	2T
2	≤50 [345]	40~65 [275~450]	20	2T	2.5T
3	≤65 [450]	55~80 [380~550]	18	2T	2.5T
4	≤80 [550]	70~95 [483~655]	15	2.5T	3T
5	≤130 [895]	≤120 [828]	10	4.5T	5T
7	≤50 [345]	40~65 [275~450]	20	2T	2.5T
9	≤90 [620]	≤70 [483]	15	2.5T	3T
11	≤35 [240]	20~45 [138~310]	24	1.5T	2T
12	≤70 [483]	≤50 [345]	18	2T	2.5T
16	≤50 [345]	40~65 [275~450]	20	2T	2.5T
17	≤ 35[240]	20~45 [138~310]	24	1.5T	2T
23	≤120 [828]	≤110 [759]	10	4.5T	5T

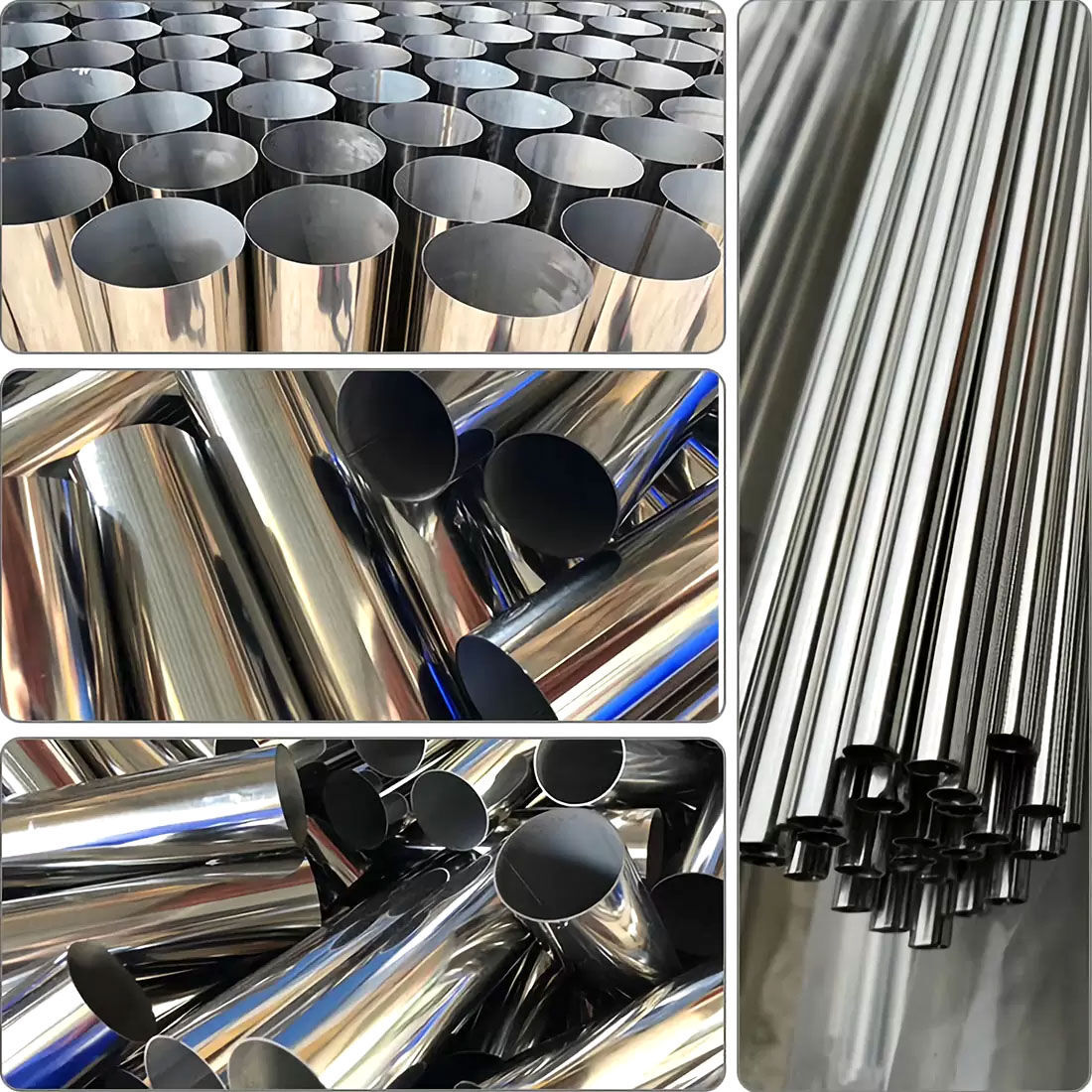

Product Show
